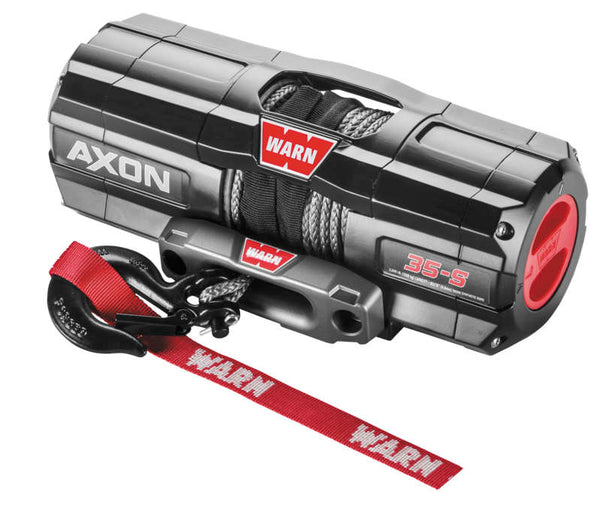

WARN AXON 3500-S Winch with Synthetic Rope
The AXON™ lineup takes winching to the next level by combining a powerful motor and an all new first-of-its-kind, digital contactor into one unit called a Motactor™. This combined unit provides the user with higher levels of performance and feedback. All-metal construction, waterproof-sealing and increased structural rigidity, designed for the most extreme environments.
SPECIFICATIONS
- 3,500 lb. capacity for riders who push the limits
- Black powder-coated finish for corrosion resistance
- Complete waterproof sealing keeps the elements out
- Dash-mounted control switch with handlebar adaptor
- 50’ x 3/16” Spydura® synthetic rope, hawse fairlead and black hook
- Motactor™ reduces install time
- Digital control allows you to monitor speed, load and motor temperature
- Built-in load limiter
- Redesigned clutch, based on the legendary WARN 4WD hub lock
- Manufacturer's limited lifetime warranty on mechanical functions
- Three-year manufacturer's warranty on electrical component
***WINCH MOUNT KITS
PART NUMBER #374425
Can-Am: Commander 1000 2011-14
Can-Am: Commander 1000 DPS 2011-20
Can-Am: Commander 1000 X 2011-14
Can-Am: Commander 1000 XT 2011-20
Can-Am: Commander 1000 XT-P 2011-20
Can-Am: Commander 800R/XT/DPS 2011-20
Can-Am: Commander MAX 1000 2011-20
Can-Am: Commander MAX 1000 DPS 2011-20
Can-Am: Commander MAX 1000 LTD 2011-20
Can-Am: Commander MAX 1000 XT 2011-20
Can-Am: Commander MAX 800R 2011-20
Can-Am: Commander MAX 800R DPS 2015-20
Can-Am: Commander MAX 800R XT 2011-20
PART NUMBER #374518
Polaris: General 1000 2016-19
recommend using 374595 Dash Rocker Switch
Polaris: General 4 1000 2016-19
Recommend using 374595 Dash Rocker Switch
Polaris: RZR 4 900 2015-20
Polaris: RZR 900 EPS LE 2015-20
Polaris: RZR S 1000 2014-18
Polaris: RZR S 900 2015-20
Polaris: RZR XP 1000 EPS 2014-20
Polaris: RZR XP 1000 EPS LE 2014-20
Polaris: RZR XP 4 1000 EPS 2014-20
PART NUMBER #373398
Polaris: RZR XP 4 Turbo 19-20
Recommend 374740 extended wiring kit for 4 passenger / crew models
Polaris: RZR XP 4 Turbo S 18-20
PART NUMBER #374740
