Description

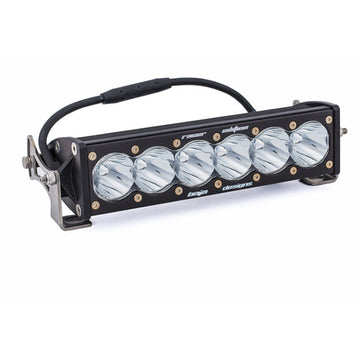

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000. The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.

NOTE: Wiring harness not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Detailed Specs

SKU: 451001

Dimensions

Depth (in.)	4.290
Height (in.)	2.690
Length (in.)	10
Weight (lbs.)	4.250

Specifications

Amperage Rating (A)	7.700
Average Rated Life (hr.)	49,930
Beam Pattern	Spot
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	10,817 (High); 9,230 (Low)
Description	Straight; Spot; Clear
Housing Color	Black
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam
Lighting Quantity	6
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Description	Mounting Brackets
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	OnX6+ 10 Inch LED Light Bar
Universal or Specific	Universal
Wattage (W)	106.260
Wiring Harness Description	Hi-Low Dongle
Wiring Harness Included	No

Standards & Compliance

Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
